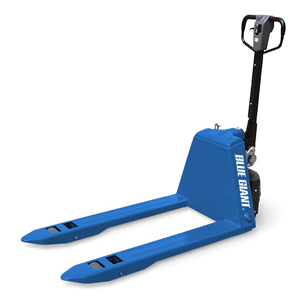

SEPJ-33

The SEPJ-33 Semi-Electric Pallet Truck is a natural upgrade from your hand pallet truck. Power drive and an electric brake enables the safe and steady negotiation of ramps and inclines.

CAPACITY

• 3,300 lb (1,497 kg)

PERFORMANCE

• 24-volt 30AH maintenance-free battery pack with 110V plug-in automatic charger
• Travel speed: 2.5mph (unloaded) and 2.0mph (under load)

ERGONOMICS

• Low-mounted tiller arm offers excellent operator comfort
• Three-position hydraulic lever: lifting, neutral, and lowering
• Handle return spring keeps operator handle in vertical position
• Wrap around hand guard, push button travel control, reversing switch, on/off switch, battery discharge indicator and horn as standard equipment

STRUCTURAL INTEGRITY

• Fork size: 27″ x 45″ (686 mm x 1,143 mm) standard
• Tapered forks and entry and exit rollers support smooth pallet handling
• Galvanized housing with sturdy construction
• Fully sealed precision-welded pump assembly with a harden chrome lift cylinder
• Ridged reinforced steel C-channel construction in frame
• Durable powder coat paint

 Brochure

 Owner’s Manual

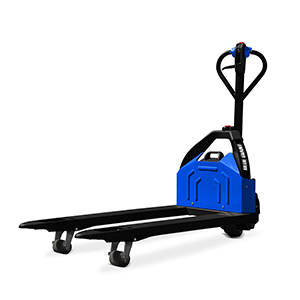

EPJ-25

 Brochure

 Owner’s Manual

EPJ-30

The EPJ-30 Power Pallet Truck combines economy with productivity. A low-cost, high-performance alternative to hand pallet trucks, it is built to accommodate the freight-handling needs of the busiest warehouses.

CAPACITY

• 3000lbs (1364kgs)

PERFORMANCE

• DC drive motor delivers steady acceleration and travel speeds
• Curtis® Transistor Travel Controller supports simple and precise truck positioning
• Electric travel, lift and lower controls (located on the handle) are designed to allow unit operation with either hand
• Anti-rollback feature delivers maximum power when traveling up- or downhill
• Tapered and compact forks support greater maneuverability
• Travel speed: 2.5mph (unloaded) and 2.15mph (under load)

ERGONOMICS

• Multi-function control handle incorporates butterfly-style thumb controls, reversing switch, and horn button for ease of use
• Hand grips fit the operator’s hand comfortably, reducing fatigue

STRUCTURAL INTEGRITY

• Fork size: 27″ x 45″ (635mm x 1143mm) standard
• Integral 24V 65AH maintenance-free rechargeable batteries and internal 110V charger included as standard
• Hydraulic pump with overload relief valve
• High-strength service cover protects internal components from impact damage
• Long-life and low-noise gear box

RECOMMENDED APPLICATIONS

• Warehouses
• Storage facilities
• Retail outlets
• Beverage distribution
• Frozen food storage
• Pharmaceuticals
• Chemical handling and processing facilities

 EPJ-30 Power Pallet Truck

 Brochure

 Owner’s Manual

 Product Overview

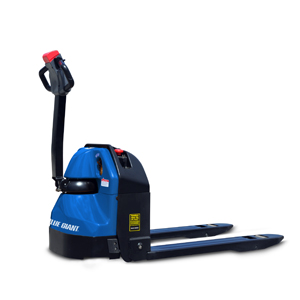

EPJ-40

The EPJ-40 Power Pallet Truck was designed specifically to address the unique demands of lift gate and local delivery applications. More compact than a regular power pallet truck, it supports easier maneuverability when working in loaded trailers.

CAPACITY

• 4000lbs (1818kgs)

PERFORMANCE

• Vertically-mounted AC drive motor delivers steady acceleration and travel speeds
• 24V ZAPI ACO Travel Controller supports simple and precise truck positioning
• Electric travel, lift and lower controls (located on the handle) are designed to allow unit operation with either hand
• The electromagnetic braking system delivers reliable frictionless braking even during extended and heavy use
• Tapered and compact forks support greater maneuverability
• Travel speed: 2.8mph (unloaded) and 2.5mph (under load)

ERGONOMICS

• Multi-function control handle incorporates butterfly-style thumb controls, reversing switch, and horn button for ease of use
• Hand grips fit the operator’s hand comfortably, reducing fatigue

STRUCTURAL INTEGRITY

• Fork size: 27″ x 45″ (635mm x 1143mm) standard
• Two 12V AGM 85 AH maintenance-free batteries with 10AMP 110VAC plug-in charger
• Hydraulic pump with overload relief valve
• High-strength service cover protects internal components from impact damage
• Emergency brake with power cut-off heightens safety levels.

RECOMMENDED APPLICATIONS

• Warehouses
• Storage facilities
• Retail outlets
• Beverage distribution
• Frozen food storage
• Pharmaceuticals
• Chemical handling and processing facilities

AVAILABLE OPTIONS

• 22″ (559mm) and 36″ (914mm) forks
• 48″ (219mm) and 60″ (1524mm) back rest for chassis
• Stability casters
• Tool tray with load restraint

 Download Brochure

 Owners Manual

 Product Overview

EPJ-45

The EPJ-45 Power Pallet Truck is a high-powered solution for facilities and outlets that regularly handle and transport ground-level loads. Quality and rugged components enable smooth and fast operation and keep maintenance costs low.

CAPACITY

• 4500lbs (2045kgs)

PERFORMANCE

• AC drive motor delivers faster travel speeds, uses less energy, and requires little to no maintenance
• 24-Volt ZAPI travel controller supports smooth truck travel and easy positioning
• Anti-rollback feature delivers maximum power when traveling up- or downhill
• Creep speed control allows for easier maneuvering at low speeds in tight places
• Travel speed: 3.6mph (unloaded) and 3.5mph (under load)

ERGONOMICS

• Ergonomic fingertip control handle has a wrap-around hand guard, thumb control travel function, and easily accessed lift and lower buttons for strain-free operations
• Hand grips fit the operator’s hand comfortably, reducing fatigue

STRUCTURAL INTEGRITY

• Fork size: 27″ x 45.5″ (686mm x 1158mm) standard
• 224 A.H. battery package (4-6V AGM maintenance-free batteries) complete with automatic 25AMP / 110VAC plug-in internal charger
• State-of-the-art optimized gear technology supplies advantages such as low-noise operation and zero maintenance
• High-strength service cover protects internal components from impact damage

RECOMMENDED APPLICATIONS

• Warehouses
• Storage facilities
• Retail outlets
• Beverage distribution
• Frozen food storage
• Pharmaceuticals
• Chemical handling and processing facilities

AVAILABLE OPTIONS

• 48″ (521mm x 1219mm) back rest for chassis
• Stability casters for 27″ (686mm) wide fork

 EPJ-45 Power Pallet Truck

 Download Brochure

 Owners Manual

 Product Overview
